Description
Applications
It is widely used
in high-precision navigation, aerospace, precision agriculture, vehicle
positioning, UAV and other high-precision navigation and positioning occasions.
KeyFeatures
uMulti feed point technology is adopted to
ensure the performance of right-handed circular polarization and phase center, and reduce the influence of measurement error;
nTheantenna unit has high passive gain and wide pattern beam to ensure the reception effect of low elevation signal;
nPre filtering, low noise coefficient and strong anti-interference ability.

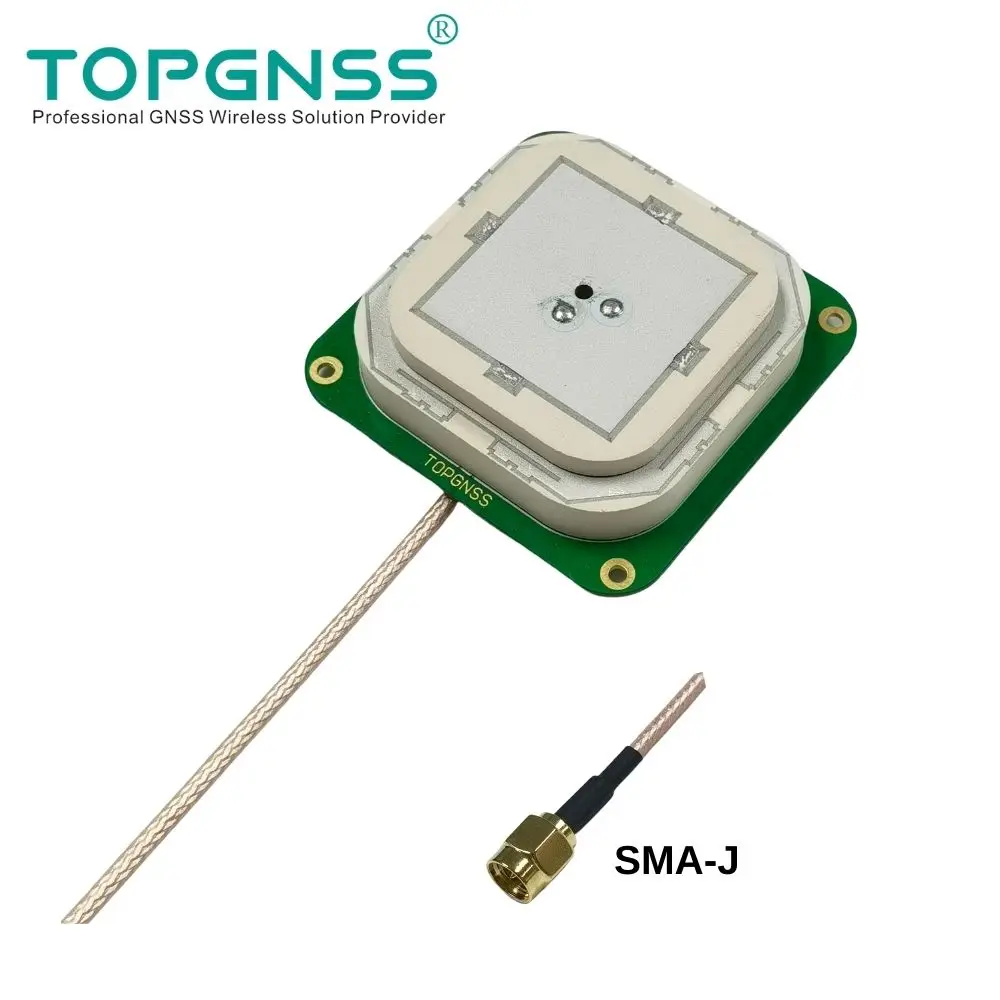

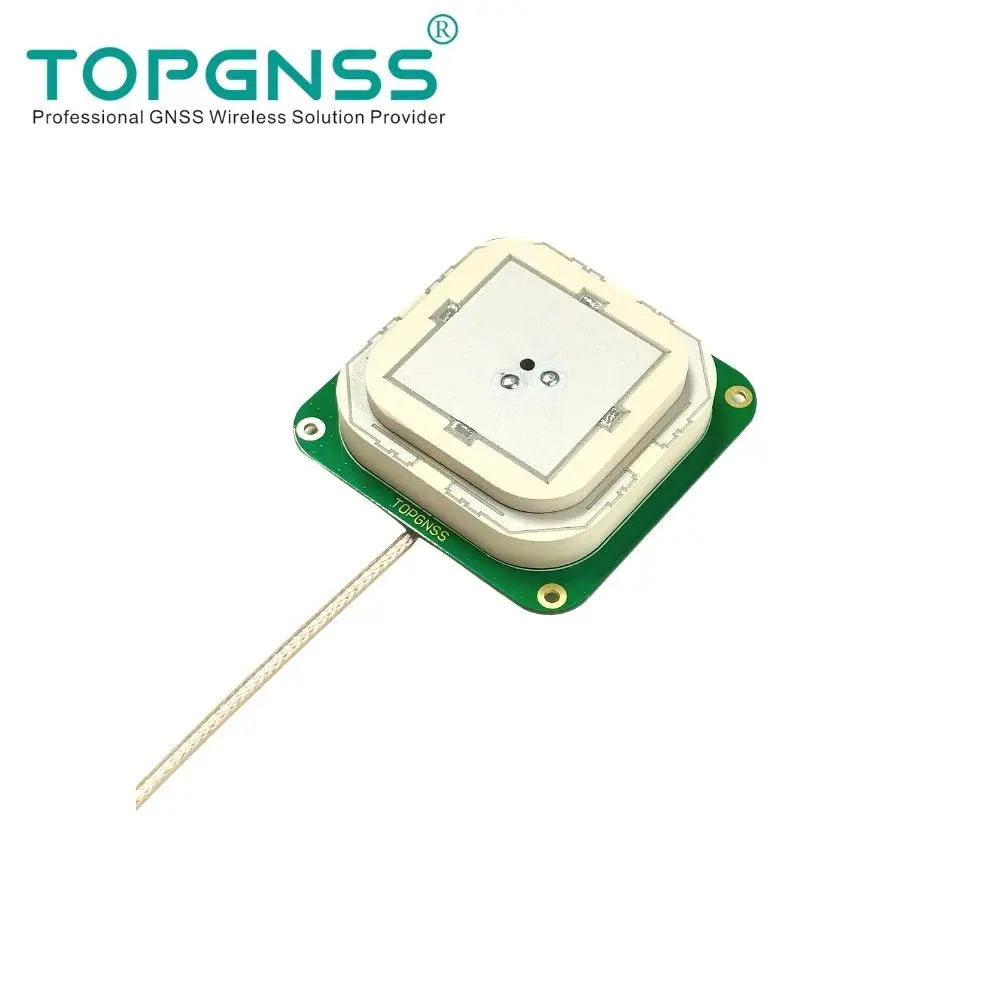

TOPGNSS L1+L5 High precision RTK GNSS AN501 Antenna | |

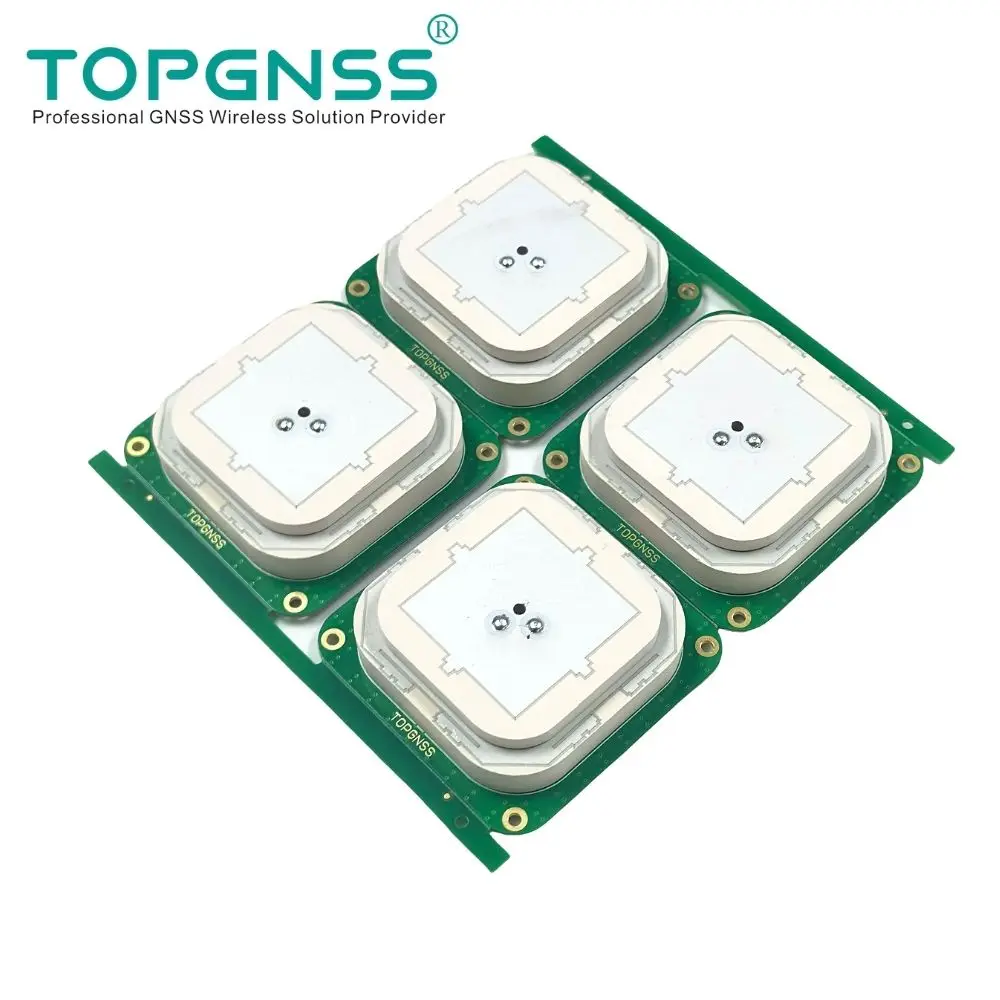

Patch |
Dua Feed, Dual Stacked Patch |
Supported positioning signal bands |
BEIDOU：B1/B2a； GPS：L1/L5； Galileo：El/E5a GLONASS：L1 |
Peak Gain* |
≥3.5dBi@Fc, |
Polarization |
RHCP |
Axial Ratio@zenith |
≤1.5dB |
Azimuth Coverage |
360° |
Impedance |
50ohm |
LNA | |
Frequency Range |
1176.45±10.23MHz 1559MHz~1606MHz |
LNA Gain* |
28±2.0dB（Typ. @25°C） |
Noise Figure* |
≤2.0 |
Output VSWR |
≤1.8:1 |
Operation Voltage |
3.0~16V DC |
Operation Current |
≤45mA |
ESD circuit protection |
15KV air discharge |
Mechanicals &Environmental | |

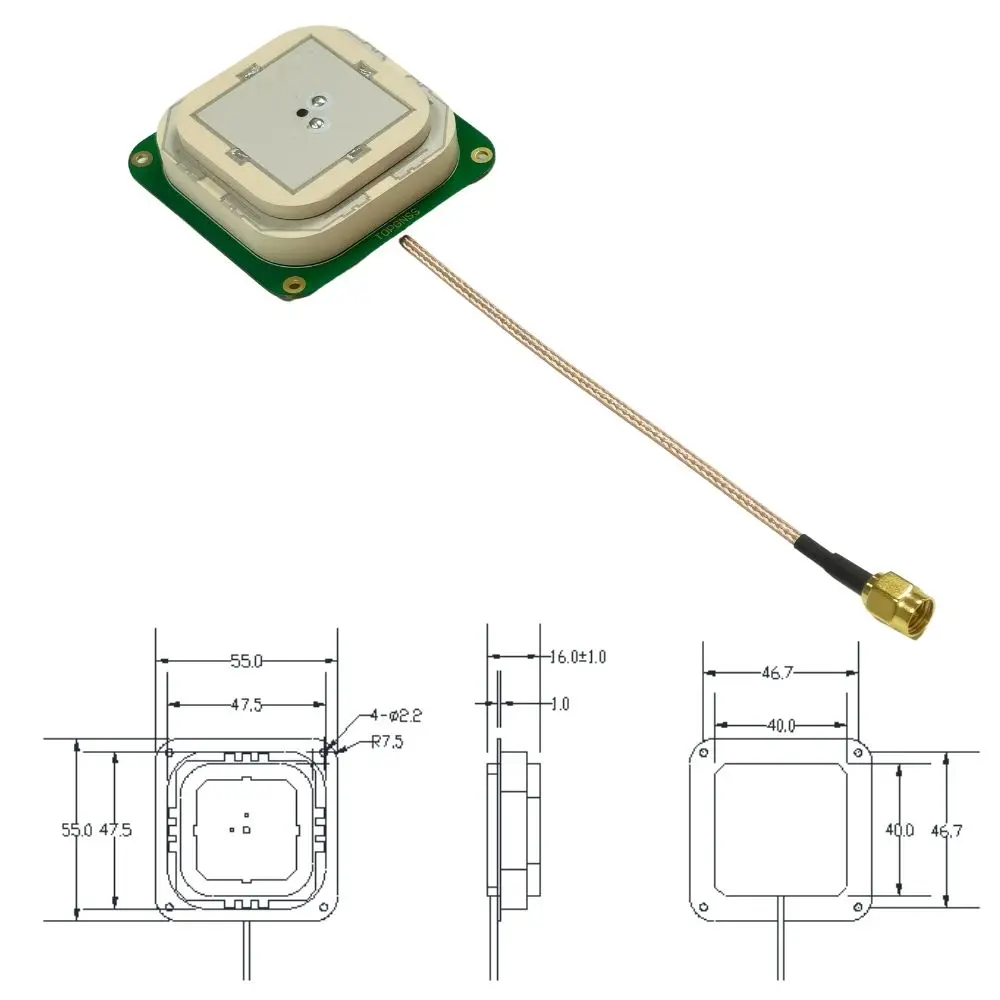

Dimension |
见附图 |

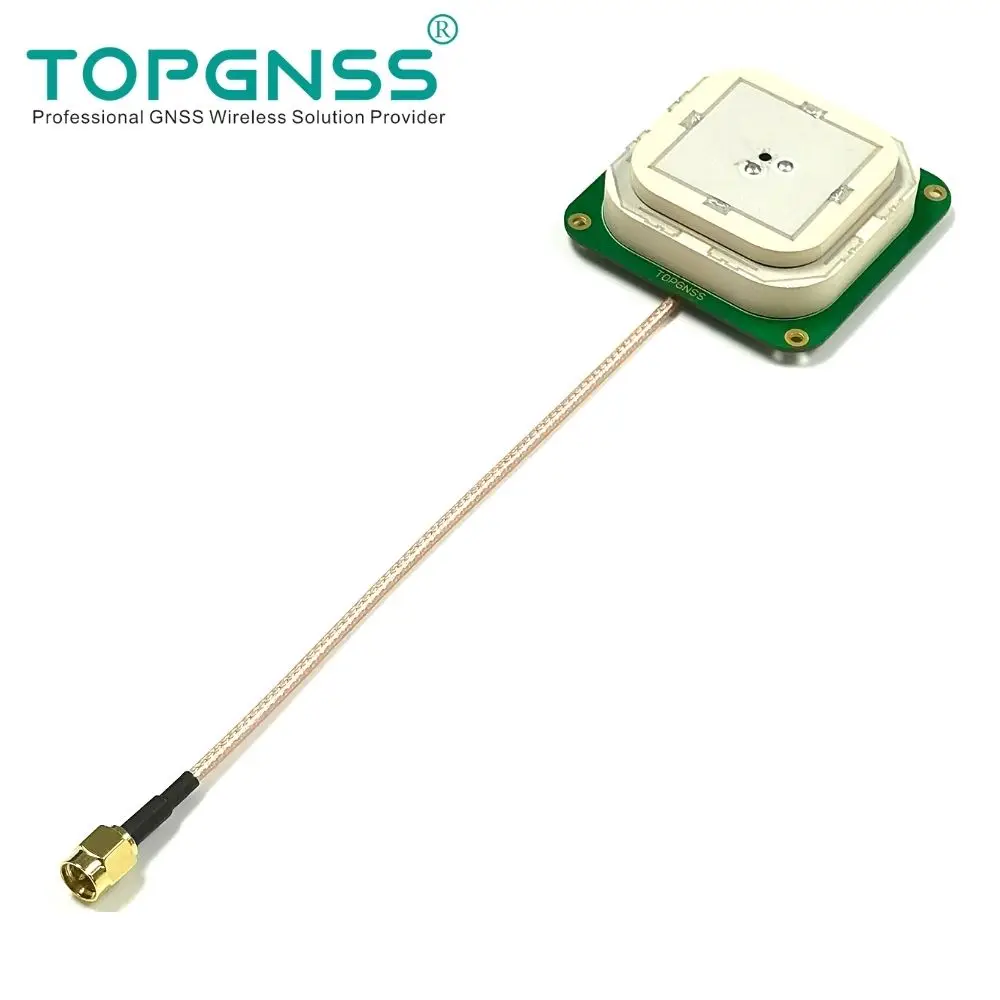

Connector |
SMA-J Connector: cable length 15cm |
Weight |
≈80g |
Attachment Method |
|
Operating Temp |
－40℃～＋85℃ |
Storage Temp |
－45℃～＋85℃ |
Humidity |
95% No-condensing |
Vibration |
3 axis, sweep = 15 min, 10 to 200Hz sweep:3G |
Shock |
Vertical |
