TOPGNSS new small volume RTK rover GPS module, differential FIXED receiver antenna RTCM3.X protocol, high precision agriculture

New product small size RTKGPS module GN-02B

The GN-02B enhanced navigation and positioning G-Mouse product designed and produced by TOPGNSS is a single-frequency RTK enhanced chip and antenna integrated board product launched by TOPGNSS for the high-precision application market. It adopts GNSS chip, supports multi-system joint positioning, integrates unique RTK algorithm, and exerts the super performance of single-frequency RTK positioning.
GN-02B supports BDS B1, GPSL1, Beisan, QZSS and other signals. At the same time, the on-board dual-feed point self-developed high-precision single-frequency positioning antenna is used to effectively suppress multipath signals. The antenna trace is the shortest, the anti-interference effect is good, and the positioning effect is improved; the GN-02B has low power consumption and consistent positioning accuracy ( It has significant advantages in performance such as sub-meter level, half the sky, shaded environment) and sub-meter level positioning accuracy convergence time during parking (convergence time during parking <5s).

Features:
• Unique RTK algorithm, stable centimeter-level positioning accuracy
• Support BDS/GPS/QZSS multi-system joint positioning
• Smart Suppress anti-jamming technology
• Small package size, easy to integrate
Application field
The products are mainly used in high-precision location services, including high-precision car navigation, logistics monitoring, shared travel, and unmanned vehicles.

Support RTCM data output: RTCM 3.X

Output navigation data format:
NMEA 0183 V4.10
RTCM 3.X
RTCM3.X message type:
1005/1006 base station coordinates
1074 GPS observation
1114 QZSS Observation
1124 BDS Observation

prompt:
Support RTK rover mode
Does not support RTK base station mode

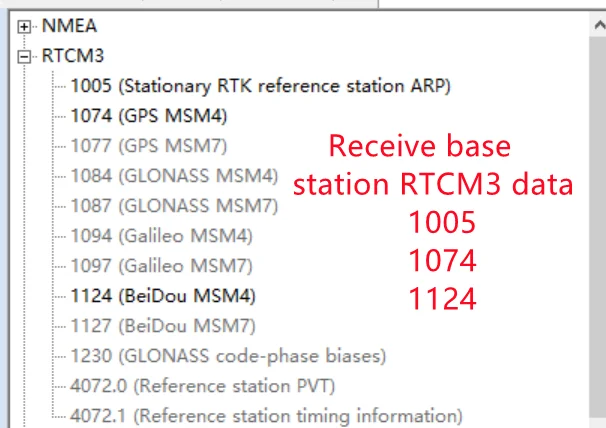

Connect NTRIP test image

SIZE:

PIN definition
