Description
|
Parameter |
Specification |
|
|
Electrical Characteristics |
Chipset |
M8030-KT |
|
Receiving Format |
GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS |
|
|
Frequency |
GPS L1，GLONASS L1，BeiDou B1，SBAS L1，Galileo E1 |
|
|
Channels |
72 Searching Channel |
|
|
Sensitivity |
Tracking |
-167dBm |
|
Reacquisition |
-160dBm |
|
|
Cold start |
-148dBm |
|
|
Hot start |
-156dBm |
|
|
Accuracy |
Position Horizontal |
2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) |
|
Velocity |
0.1m/sec 95% (SA off) |
|
|
Timing |
1us synchronized to GPS time |
|
|
Acquisition Time |
Cold Start |
26s |
|
Warm start |
25s |
|
|
Hot start |
1s |
|
|
Data and Update Rate |
Support Rate |
Default 9600bps,4800bps to 921600bps, |
|
Data Level |
TTL or RS-232,Default RS-232 level |
|
|
Data Protocol |
NMEA-0183 or UBX, Default NMEA-0183 |
|
|
Single GNSS |
1Hz-18Hz |
|
|
Concurrent GNSS |
1Hz-10Hz,Default 1Hz |
|
|
Operational Limits |
Altitude |
50,000m Max |
|
Velocity |
515m/s Max |
|
|
Acceleration |
Less than 4g |
|
|
Power consumption |
VCC |
DC Voltage 12V,Typical:15V |
|
Current |
Capture 70mA/12V |
|
|
Mechanical Specifications |
Dimension |
PhiO=96mm*124mm |
|
Weight |
350g |
|
|
Connector |
DB-9 Female interface |
|
|

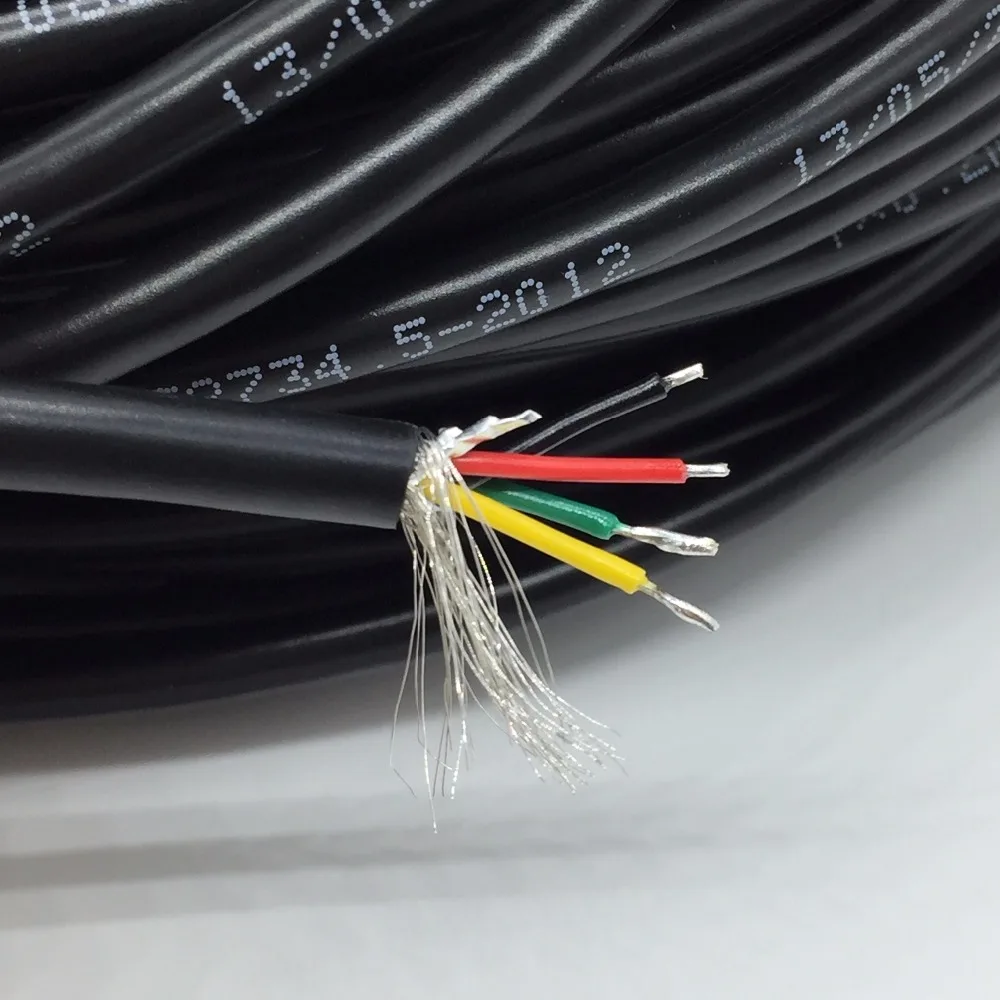

Cable Length |
5.0m |
|
|
Environment |
Operating temp |
-40 degC ~ +85degC |
|
Storage Temp |
-40degC ~ +85degC |
|
GPS+GLONASS
|
|
