UART 3.3-5V TTL GPS Modue GPS GLONASS dual mode M8n GNSS GPS Module Antenna Receiver,built-in FLASH,NMEA0183 FW3.01 TOPGNSS

Roll over image to zoom in

UART 3.3-5V TTL GPS Modue GPS GLONASS dual mode M8n GNSS GPS Module Antenna Receiver,built-in FLASH,NMEA0183 FW3.01 TOPGNSS

Name: UART 3.3-5V TTL GPS Modue GPS GLONASS dual mode M8n GNSS GPS Module Antenna Receiver,built-in FLASH,NMEA0183 FW3.01 TOPGNSS
Brand: GPSModule.store
Price: 22.00 USD
Availability: InStock

GPSModule.store

Share this product

Product features:

UART output protocol

GNSS multi-mode design, support GPS+GLONASS and GPS+ Beidou Positioning mode switching

Built in FLASH can be configured to save output parameters

Using UBX-8030-KT chip design

6PIN pin pad

Baud rate: 9600 (default)

Location mode: GPS+GLONASS (default)

GPS+BEI DOU mode can be set

UBX-M8030-KT chipset

Frequency:

GPS: L1, 1575.4200 MHz

GLONASS: L1, 1602 (k x 0,5625) MHz

BEIDOU COMPASS: B1, 1561.0980 MHz

GALILEO E1, 1575.4200 MHz

QZSS L1, 1575.4200 MHz

Accepts the signals of up to 72 satellites at the same time

Supports AssistNow online / offline,

SBAS (WAAS, EGNOS, QZSS and MSAS)

Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG

USB specification 2.0

Auto Baud Rate up to 115200 bps

Update rate:

Single GNSS: 18 Hz (e.g. GPS solo)

Multi GNSS: 10 Hz (e.g. GPS + GLONASS)

Sensibility max. -167 dBm

IPX6 protection class

Magnetic, non-slip on the bottom

LED-indicator for GPS-status

Operating temperature: -40 ° C to 80 ° C

Power supply: 5 Volt

Current consumption: max. 50mA

Cold start in ca. 26 seconds

Hot start in ca. 1 second

Positioning accuracy: 2.5 m CEP (Circular Error Probable) and

2 m CEP with SBAS

GN-2630G GNSS MODULE

GPS+GLONASS

gn-2630g(ttl)

GN-2630G PIN

IMG_20180612_153013__

6PIN 1.25 connector with 2.54 pin pitch compatible design, easy to use test.

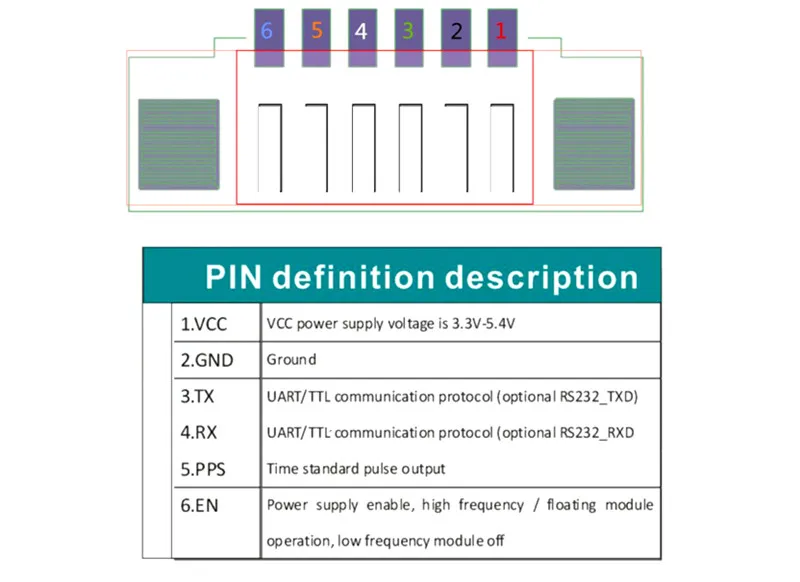

PIN definition:

Outline dimension:

Dimensions (LxWxH): 26 x 30 x8.9mm

TOPGNSS GNSS Module GN-2630G Performance
GNSS CHIP	M8030-KT
frequency	L1, 1575.42MHz,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS,
protocol	NMEA 0183 v2.3,4.x GPS/QZSS L1 C/A,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS, EGNOS,MSAS , Support Galileo E1B/C. Default GPS+GLONASS mode Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT binary and NMEA Command
Available baud rate	(Default 9600) Can be set 1200,4800,19200,38400,57600,115200 bps
Receiving channel	72
Sensitivity	Tracking sensitivity:-160Dbm Capture sensitivity:-157dBm
Cold start	29s average
Warm start time	28s average
Hot start time	1s average
Precision	HorizontalPosition:Autonomous<2.5maverage, SBAS < 2.0m average Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
maximum height	18000 Meter
Maximum speed	515 m/s
Maximum acceleration	4G
Update frequency	1-10Hz(default1HZ
A-GPS	AssistNow on-line and off-line
Working output level
output level	Output TTL level
Physical characteristics
PIN	6 pin 1.25pitch GND,VCC3.3-5V.TX.RX.PPS.EN
Dimensions	30mm 26 mm 8.5mm
Operating Voltage	3.3V-5.0VDC ±5%
weight	8.5g
Connector form	1.25 6 PIN
Cable length:	15 CM
Operating temperature	-40 to 85
Storage temperature	-40 to 85
